While the waterproofing efficiency of the waterstops, curbs or hydro-expansive joints, based on the ability to react and swell in presence of water, has promoted its use in constant diffusion, in the new buildings and in the existing the function of the waterstop profiles in PVC, based on the shape of the profile and the elasticity of the material, it has reduced the application fields, limiting them almost exclusively to new constructions and to joints for expansion and rebend connection.
The profile of the PVC waterstops is in fact designed to make the path of the water permeating longer and more difficult and to ensure, at the same time, the necessary deformation capacity.
In the expansion joints the PVC waterstops are “drowned” in their full width in the two concrete castings while in the expansion joints the PVC waterstops with central bulb shape are positioned with the central bulb outside the castings.
In this way, the stresses arising from the thermal variations and from the settlement of the cement conglomerate can be absorbed thanks to the high elasticity of the material and the geometric specificity of the central bulb.

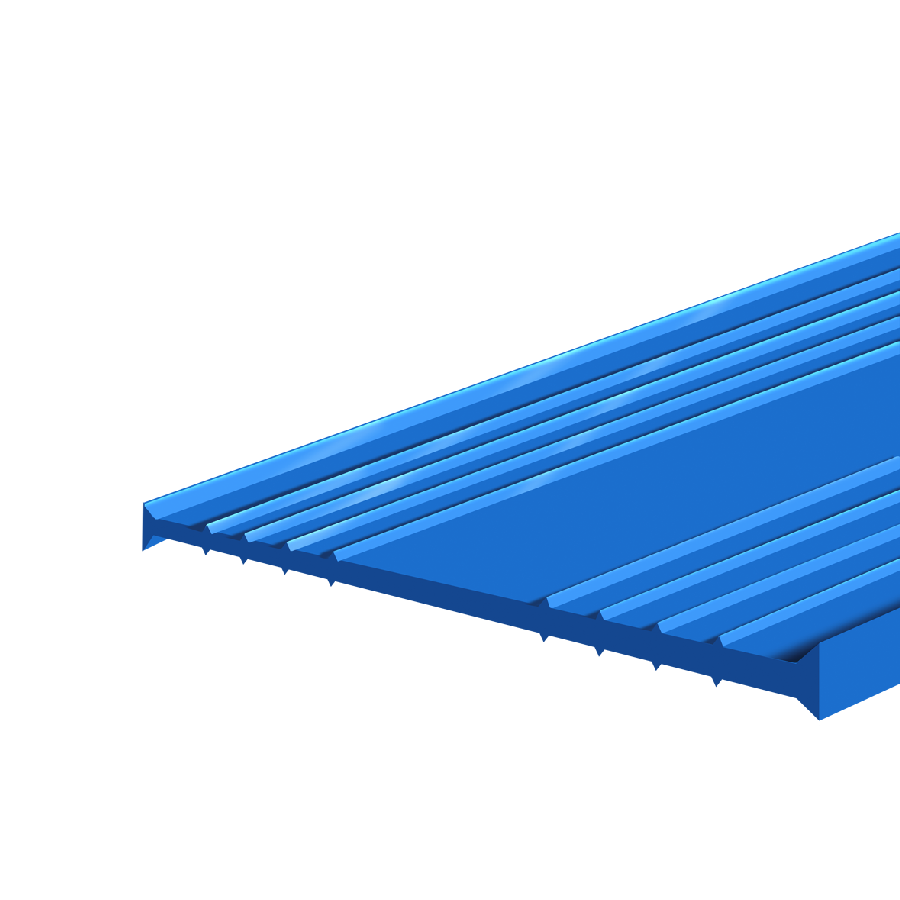

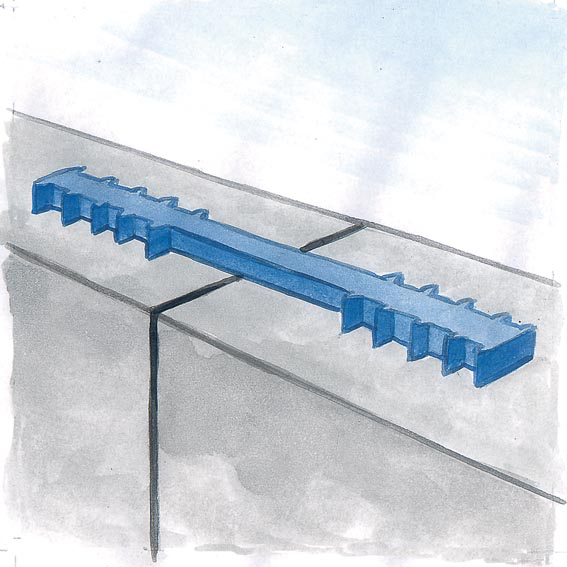

Sealpvc RG 250

The Sealpvc RG 250 waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 25 cm and high elasticity. It is used in static joints for horizontal (slabs) or vertical (elevation walls) constructions, in concrete structures, in the central position of the cast.

Sealpvc RG 250

The Sealpvc RG 250 waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 25 cm and high elasticity. It is used in static joints for horizontal (slabs) or vertical (elevation walls) constructions, in concrete structures, in the central position of the cast.

Technical data sheet

Safety data sheet

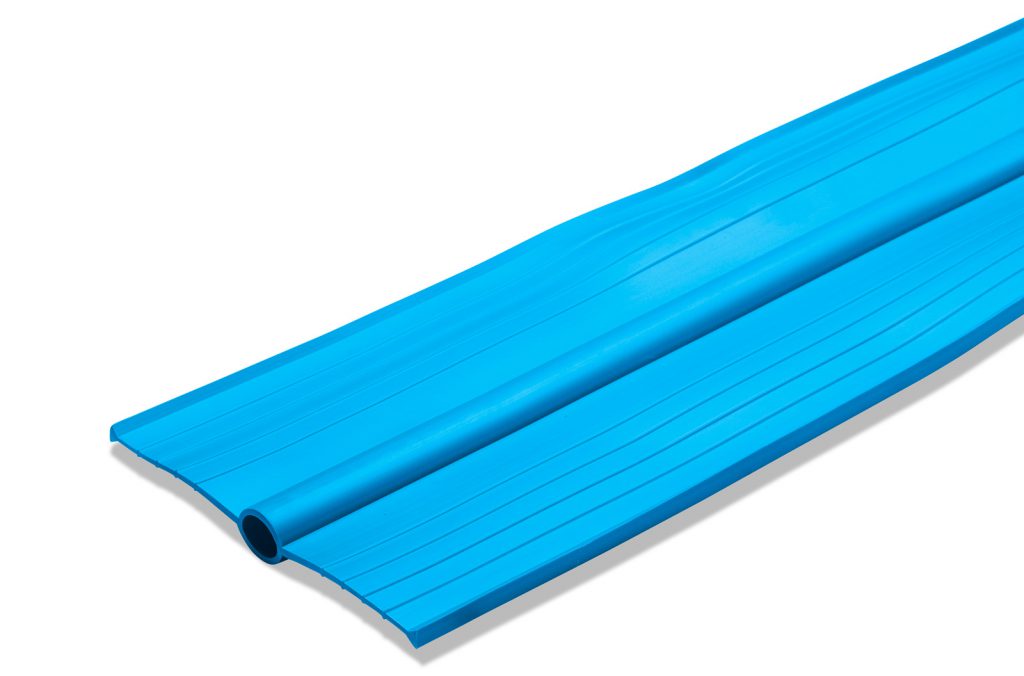

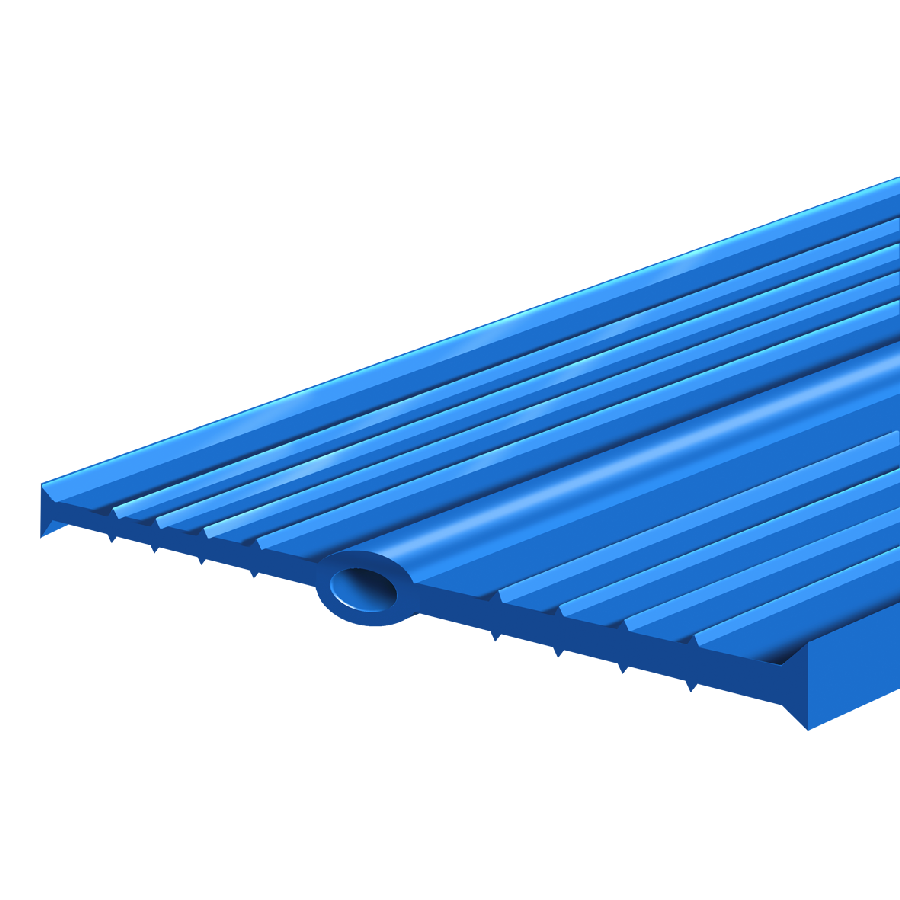

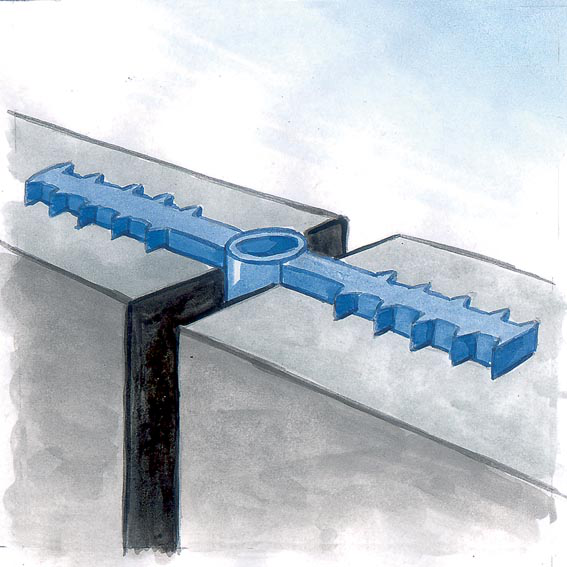

Sealpvc RG 250 Bulb

The Sealpvc RG 250 Bulb waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 25 cm with a central and highly elastic bulb. It is used in dynamic joints for horizontal (slabs) or vertical (elevation walls) constructions, in concrete structures, in the central position of the cast.

Sealpvc RG 250 Bulb

The Sealpvc RG 250 Bulb waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 25 cm with a central and highly elastic bulb. It is used in dynamic joints for horizontal (slabs) or vertical (elevation walls) constructions, in concrete structures, in the central position of the cast.

Technical data sheet

Safety data sheet





Sealpvc SF 240

The SEALPVC SF 250 waterstop is a waterproof profile in PVC that is not hydro-expansive, having a thickness of 24 centimetres and high elasticity. It is used in static joints for horizontal casting (slabs), in concrete structures, resting on the substrate beneath the reinforcement.

Sealpvc SF 240

The SEALPVC SF 250 waterstop is a waterproof profile in PVC that is not hydro-expansive, having a thickness of 24 centimetres and high elasticity. It is used in static joints for horizontal casting (slabs), in concrete structures, resting on the substrate beneath the reinforcement.

Technical data sheet

Safety data sheet

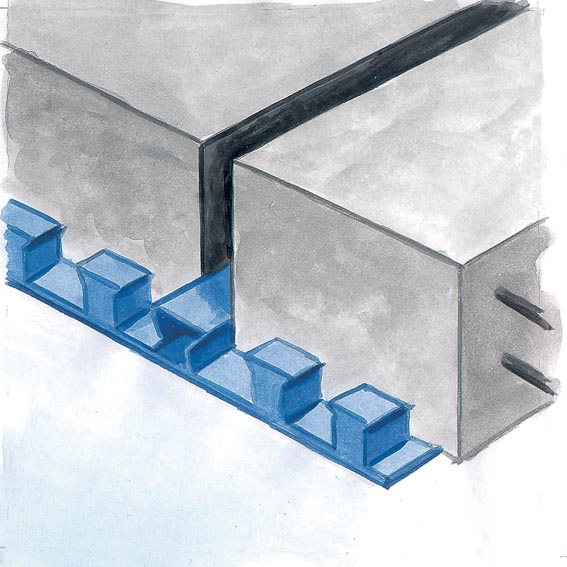

Sealpvc SF 240 Bulb

The Sealpvc SF 240 Bulb waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 24 centimetres and equipped with a central and highly elastic bulb. It is used in dynamic joints for horizontal casting (slabs), in concrete structures, resting on the substrate beneath the reinforcement, in a position central to the casting.

Sealpvc SF 240 Bulb

The Sealpvc SF 240 Bulb waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 24 centimetres and equipped with a central and highly elastic bulb. It is used in dynamic joints for horizontal casting (slabs), in concrete structures, resting on the substrate beneath the reinforcement, in a position central to the casting.

Technical data sheet

Safety data sheet
